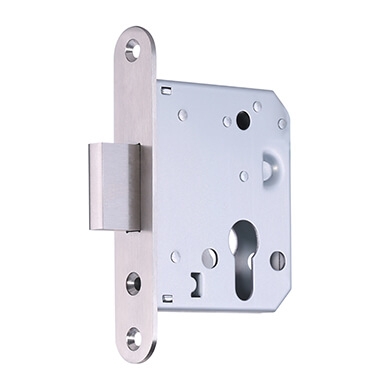

Dead Bolt Lock – A55ZD
Product Description
According to EN12209-Grade 3
For wooden or steel doors
For single-leaf doors
Optional for rebated or non-rebated doors
Suitable for external fire and smoke doors
Prepared for profile cylinders
With key action
Deadbolt 2-turns
For wooden or steel doors
For single-leaf doors
Optional for rebated or non-rebated doors
Suitable for external fire and smoke doors
Prepared for profile cylinders
With key action
Deadbolt 2-turns

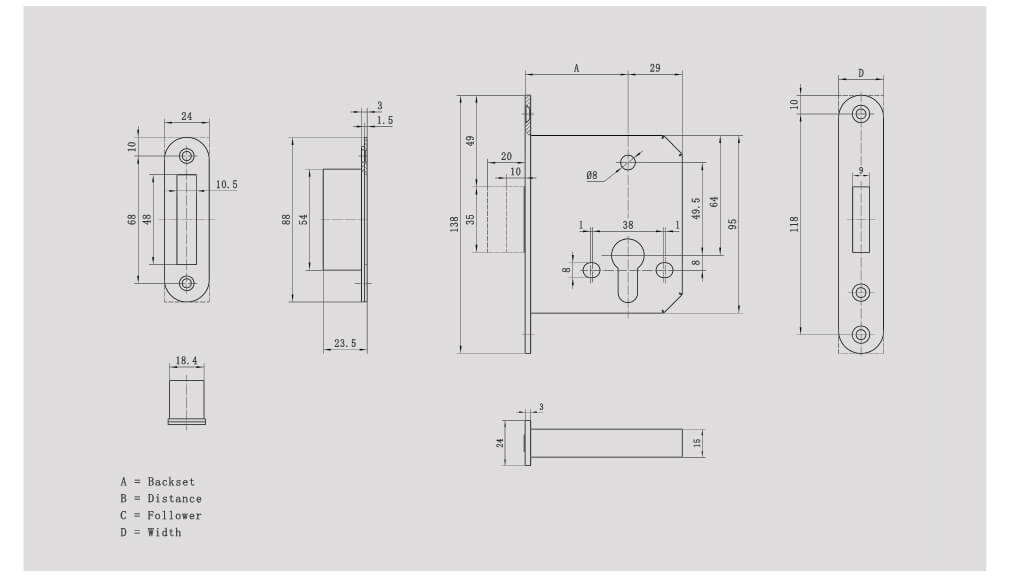

product design
Product parameters
| Sashlock | A55ZD |
| Features | According to EN12209-Grade 3 For wooden or steel doors For single-leaf doors Optional for rebated or non-rebated doors Suitable for external fire and smoke doors Prepared for profile cylinders With key action Deadbolt 2-turns |
| Backset | 45/55mm |
| Forend | 20/22/23/24mm |
| Deadbolt | 2-turn Material:SUS304 |
| Finish | SSS/PSS/PVD/AB/AC/Black |
| Accessories: | Stricking plate/Plastic pocket/Fixing screws |
| Mechnical test | Deadbolt:50,000 |
| Neutral salt spray test | 96h |
| Fire proof test | 120 minutes |
