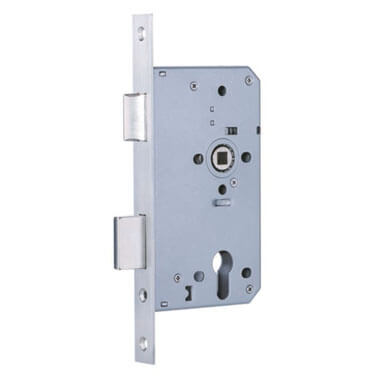

Bearing Lock – A72-Y
Product Description
According to EN 12209- Grade 2, DIN 18251-1
For wooden or steel doors
For single-leaf doors
Optional for rebated or non-rebated doors
Bearing lock body,there is a bearing in follower
Follower,latch and dead bolt are zinc alloy material
Lock case is Passivation plate(coating)
Prepared for profile cylinders
With key action
Deadbolt 2-turns
For wooden or steel doors
For single-leaf doors
Optional for rebated or non-rebated doors
Bearing lock body,there is a bearing in follower
Follower,latch and dead bolt are zinc alloy material
Lock case is Passivation plate(coating)
Prepared for profile cylinders
With key action
Deadbolt 2-turns

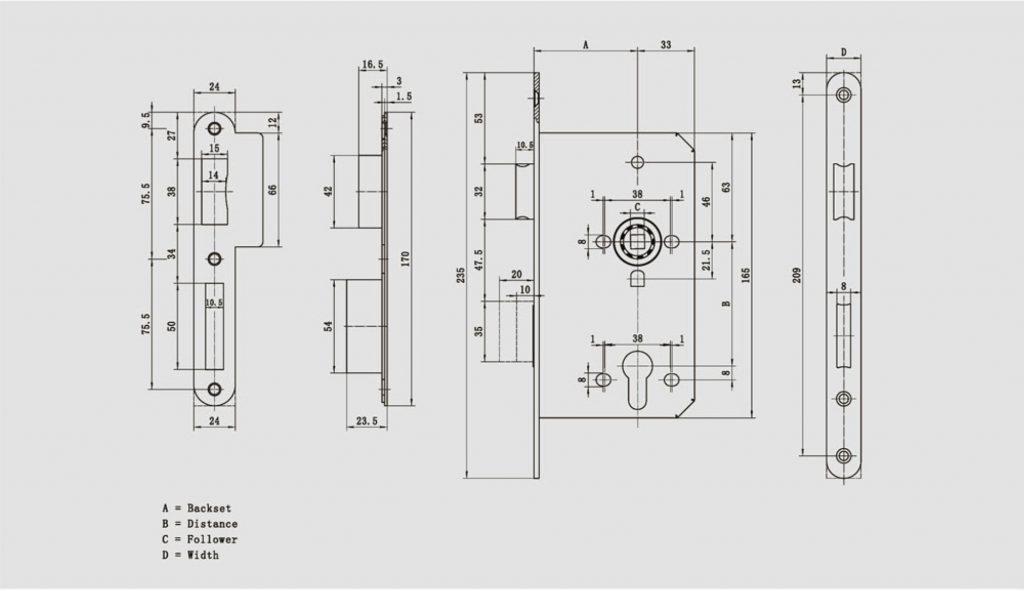

product design
Product parameters
| Sashlock | A72-Y |
| Features | According to EN 12209- Grade 2, DIN 18251-1 For wooden or steel doors For single-leaf doors Optional for rebated or non-rebated doors Bearing lock body,there is a bearing in follower Follower,latch and dead bolt are zinc alloy material Lock case is Passivation plate(coating) Prepared for profile cylinders With key action Deadbolt 2-turns |
| Follower | 8mm |
| Distance | 72mm |
| Backet | 60mm |
| Type | square head,round head |
| Thickness | 3mm |
| Width | 20mm,22mm,23mm,24mm |
| Stainless steel | satin stainless steel polished stainless steel |
| Vacuum metallizing | satin brass PVD AB AC |
| Accessories | Striking plate
Fixing screws |
