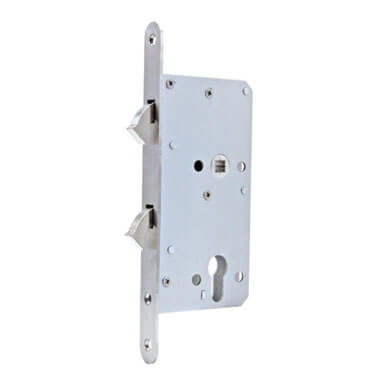

Double Hook Lock – A72HJ
Product Description
According to EN 12209- Grade 2
For sliding doors
Double hook lock,driving by follower and cylinder
Suitable for external fire and smoke doors
Prepared for profile cylinders
With key action
1-turn
For sliding doors
Double hook lock,driving by follower and cylinder
Suitable for external fire and smoke doors
Prepared for profile cylinders
With key action
1-turn

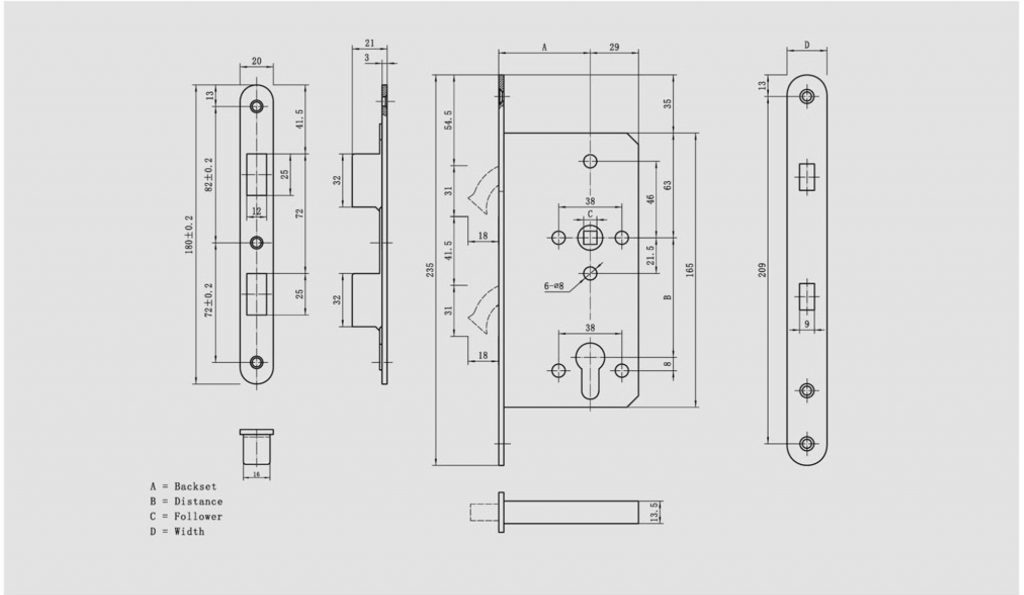

product design
Product parameters
| Sashlock | A72HJ |
| Features | According to EN 12209- Grade 2 For sliding doors Double hook lock,driving by follower and cylinder Suitable for external fire and smoke doors Prepared for profile cylinders With key action 1-turn |
| Follower | 8mm |
| Distance | 72mm |
| Backet | 55mm |
| Type | square head,round head |
| Thickness | 3mm |
| Width | 20mm,24mm |
| Stainless steel | satin stainless steel polished stainless steel |
| Vacuum metallizing | satin brass PVD AB AC |
| Accessories | Striking plate
Fixing screws |
