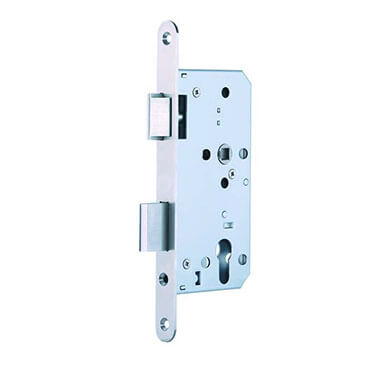

Rebated Door Lock – A72TQ
Product Description
According to EN12209-Grade 3 DIN 18251-1
For wooden or steel doors
For single-leaf doors
For rebated doors
Suitable for external fire and smoke doors
Prepared for profile cylinders
With key action
Deadbolt 2-turns
For wooden or steel doors
For single-leaf doors
For rebated doors
Suitable for external fire and smoke doors
Prepared for profile cylinders
With key action
Deadbolt 2-turns

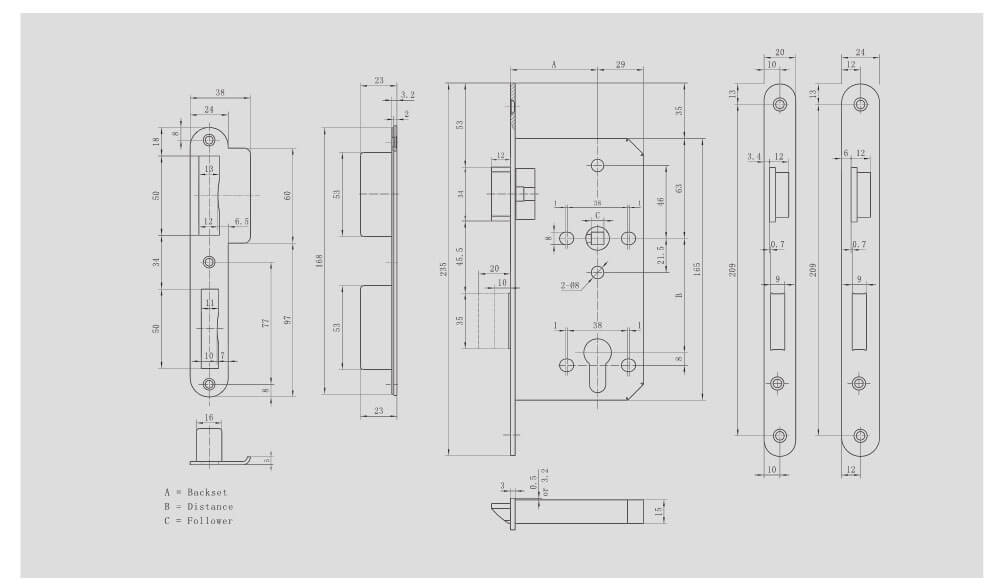

product design
Product parameters
| Sashlock | A72TQ |
| Features | According to EN12209-Grade 3 DIN 18251-1 For wooden or steel doors For single-leaf doors For rebated doors Suitable for external fire and smoke doors Prepared for profile cylinders With key action Deadbolt 2-turns |
| Distance | 72mm |
| Backset | 55/60/70/80/100mm |
| Forend | 20/24mm |
| Latch | unreversiable Material:SUS304 |
| Deadbolt | 2-turn Material:SUS304 |
| Follower | 8x8mm Material:SUS304 |
| Finish | SSS/PSS/PVD/AB/AC/Black |
| Accessories: | Stricking plate/Plastic pocket/Fixing screws |
| Mechnical test: | Latch 200,000 Deadbolt:50,000 |
