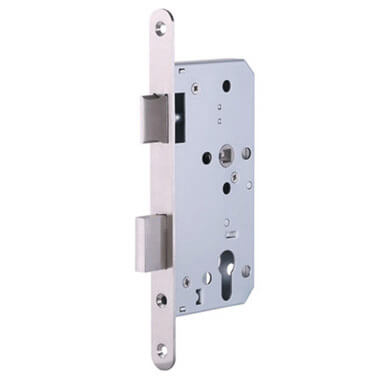

Standard Lock – A72Z
Product Description
According to EN 12209-Grade 3,DIN 18251-1
For wooden or steel doors
For single-leaf doors
Optional for rebated or non-rebatead doors
Suitable for external fire and smoke doors
Prepared for profile cylinders
With key action
Deadbolt 2-turns
For wooden or steel doors
For single-leaf doors
Optional for rebated or non-rebatead doors
Suitable for external fire and smoke doors
Prepared for profile cylinders
With key action
Deadbolt 2-turns

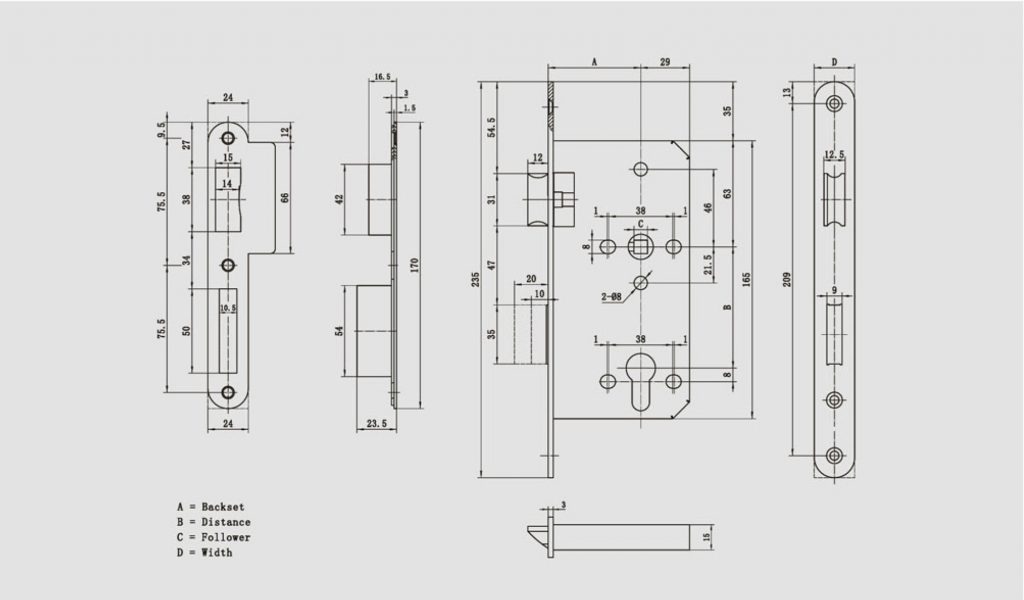

product design
Product parameters
| Sashlock | A72Z |
| Featureus | According to EN 12209-Grade 3,DIN 18251-1
For wooden or steel doors For single-leaf doors Optional for rebated or non-rebatead doors Suitable for external fire and smoke doors Prepared for profile cylinders With key action Deadbolt 2-turns |
| Distance | 72mm |
| Backet | 40/45/50/55/60/65/70/80/100mm |
| Type | square head,round head |
| Thickness | 3mm |
| Width | 20mm,22mm,23mm,24mm |
| Stainless steel | sstin stainless steel polished stainless steel |
| Vacuum metallizing | satin brass PVD AB AC |
| Accessories | Striking plate
Fixing screws |
