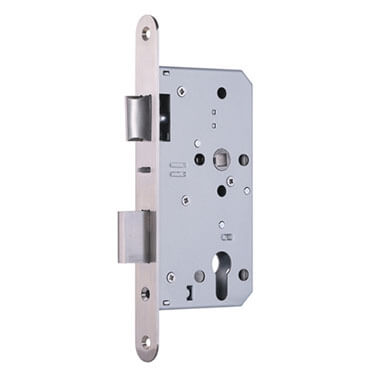

Night Deadbolt Lock – A72ZND
Product Description
According to EN12209-Grade3 and DIN18251-1
For wooden or steel doors
Optional for rebated or non-rebated doors
Suitable for external fire and smoke doors
Prepare for Euro profile cylinder
With key action,
deadbolt 2-turns
For wooden or steel doors
Optional for rebated or non-rebated doors
Suitable for external fire and smoke doors
Prepare for Euro profile cylinder
With key action,
deadbolt 2-turns

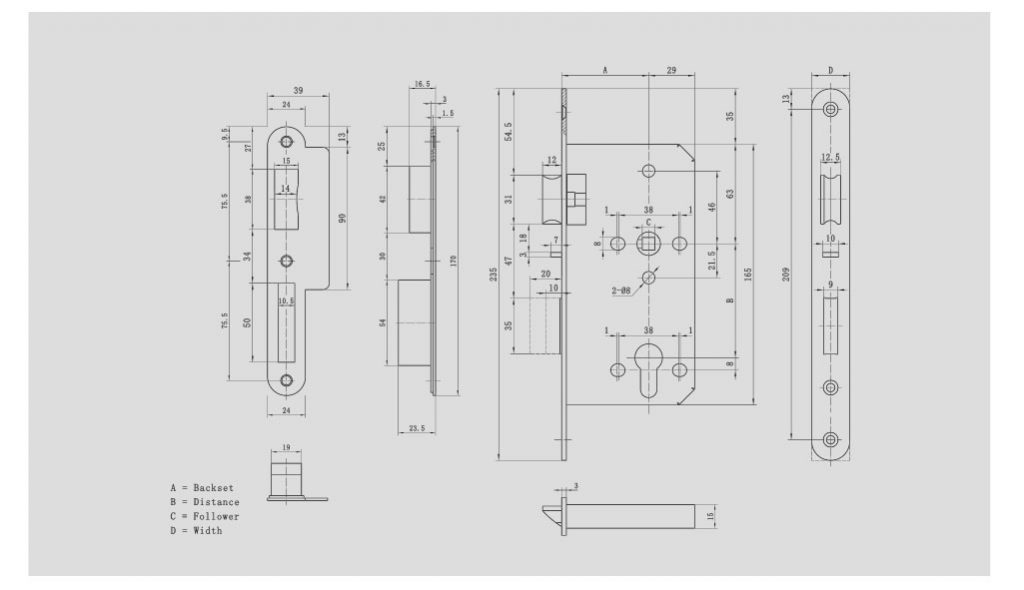

product design
Product parameters
| Sashlock | A72ZND |
| Features | According to EN12209-Grade3 and DIN18251-1 For wooden or steel doors Optional for rebated or non-rebated doors Suitable for external fire and smoke doors Prepare for Euro profile cylinder With key action, deadbolt 2-turns |
| Distance | 72mm |
| Backset | 55/60/70/80mm |
| Forend | 20/22/23/24mm |
| Latch | Reversiable Material:SUS304 |
| Deadbolt | 2-turn Material:SUS304 |
| Follower | 8x8mm Material:SUS304 |
| Finish | SSS/PSS/PVD/AB/AC/Black |
| Accessories: | Stricking plate/Plastic pocket/Fixing screws |
| Mechnical test | Latch 200,000 Deadbolt:50,000 |
| Neutral salt spray test | 96h |
| Fire proof test | 120 minutes |
