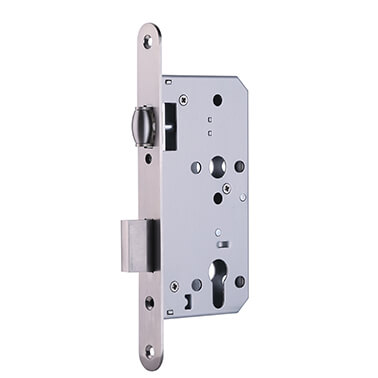

Roller Lock – A72ZP
Product Description
According to EN12209-Grade 3, DIN 18251-1
For single-leaf doors
Suitable for external fire and smoke doors
Prepared for profile cylinders
With key action
Deadbolt 2-turns
For single-leaf doors
Suitable for external fire and smoke doors
Prepared for profile cylinders
With key action
Deadbolt 2-turns

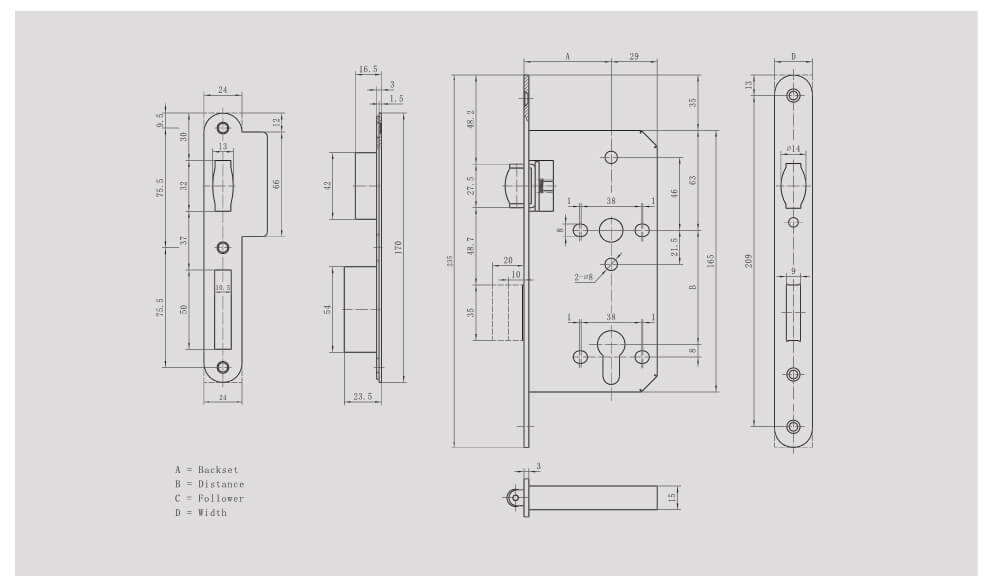

product design
Product parameters
| Sashlock | A72ZP |
| Features | According to EN12209-Grade 3, DIN 18251-1 For single-leaf doors Suitable for external fire and smoke doors Prepared for profile cylinders With key action Deadbolt 2-turns |
| Distance | 72mm |
| Backset | 40/45/50/55/60/65/70/80/100mm |
| Forend | 20/22/23/24mm |
| Roller | Material:SUS304 |
| Deadbolt | 2-turn Material:SUS304 |
| Finish | SSS/PSS/PVD/AB/AC/Black |
| Accessories: | Stricking plate/Plastic pocket/Fixing screws |
| Mechnical test: | Deadbolt:50,000 |
