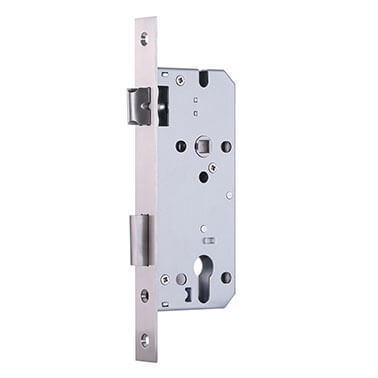

Standard Lock – A85ZFR
Product Description
According to EN 12209- Grade 3
For wooden or steel doors
For single-leaf doors
Optional for rebated or non-rebated doors
Italy style lock body, Four slots latch lock bodyPrepared for profile cylinders
With key action
Dead bolt 2-turns
For wooden or steel doors
For single-leaf doors
Optional for rebated or non-rebated doors
Italy style lock body, Four slots latch lock bodyPrepared for profile cylinders
With key action
Dead bolt 2-turns

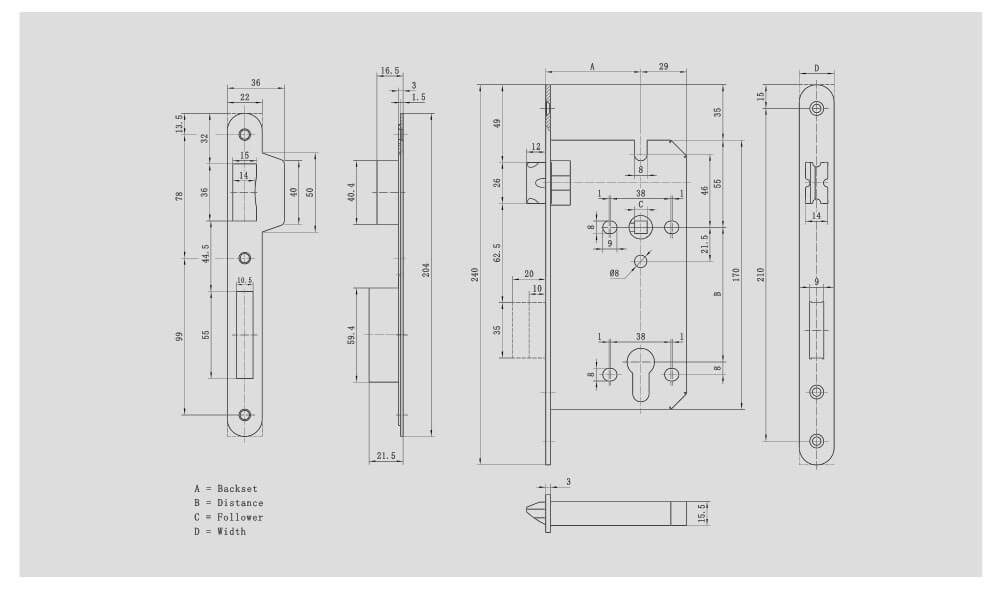

product design
Product parameters
| Sashlock | A85ZFR |
| Features | According to EN 12209- Grade 3 For wooden or steel doors For single-leaf doors Optional for rebated or non-rebated doors Italy style lock body, Four slots latch lock bodyPrepared for profile cylinders With key action Dead bolt 2-turns |
| Distance | 85mm |
| Backset | 40/45/50/60/70/80mm |
| Forend | 20/22/23/24mm |
| Latch | reversiable Material:SUS304 |
| Deadbolt | 2-turn Material:SUS304 |
| Follower | 8x8mm Material:SUS304 |
| Finish | SSS/PSS/PVD/AB/AC/Black |
| Accessories: | Stricking plate/Plastic pocket/Fixing screws |
| Mechnical test: | Latch 200,000 Deadbolt:50,000 |
