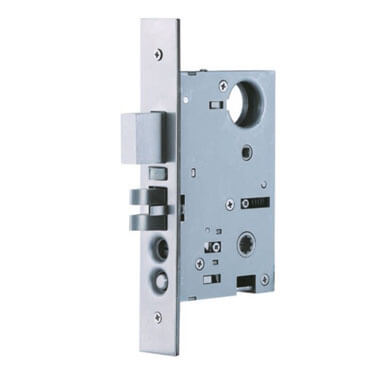

American Lock – AM21006
Product Description
ANSI lock with SUS304
For wooden or steel doors
For rebated or flush doors
For left or right doors
In compliance with ANSI BHMA156.13
The setting of the conversion device can be done when the door is open.
Both latch and deadbolt can be retracted simultaneously from the inside by turning the knob/level from inside.
High security department function can be switched on by transforming device automatically as the door is locked.
Fusible link:set inside the lock
For wooden or steel doors
For rebated or flush doors
For left or right doors
In compliance with ANSI BHMA156.13
The setting of the conversion device can be done when the door is open.
Both latch and deadbolt can be retracted simultaneously from the inside by turning the knob/level from inside.
High security department function can be switched on by transforming device automatically as the door is locked.
Fusible link:set inside the lock

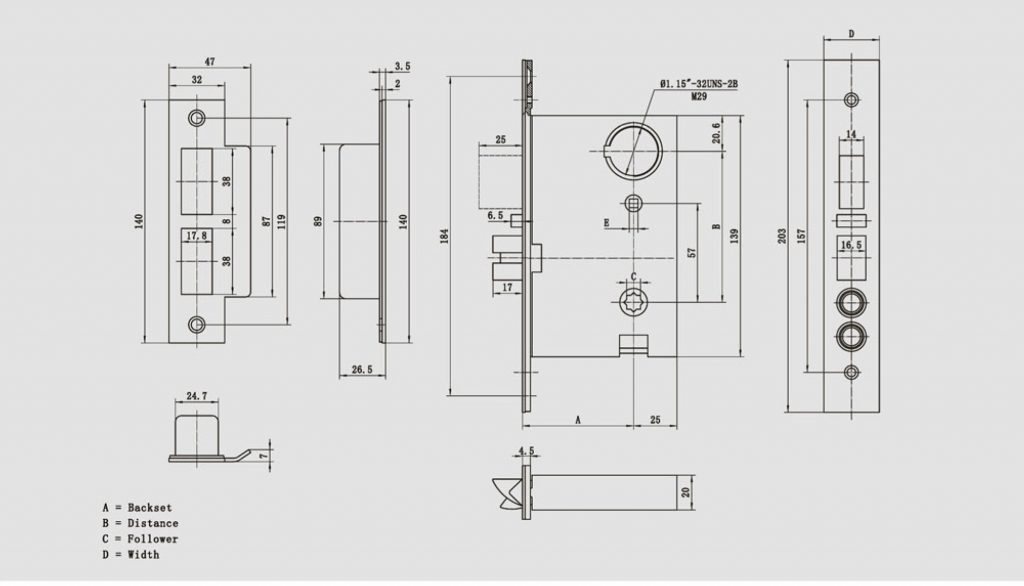

product design
Product parameters
| Sashlock | AM21006 |
| Features | ANSI lock with SUS304 For wooden or steel doors For rebated or flush doors For left or right doors In compliance with ANSI BHMA156.13 The setting of the conversion device can be done when the door is open. Both latch and deadbolt can be retracted simultaneously from the inside by turning the knob/level from inside. High security department function can be switched on by transforming device automatically as the door is locked. Fusible link:set inside the lock |
| Follower | 8mm |
| Distance | 87mm |
| Length | 203mm |
| Thickness | 1.5mm+3mm |
| Width | 32mm |
| Stainless steel | satin stainless steel polished stainless steel |
| Vacuum metallizing | satin brass PVD AB AC |
| Accessories | Striking plate
Fixing screws |
