Dead Bolt Lock – A45ZDG
Product Description
According to EN12209-Grade 3
For wooden or steel doors
For single-leaf doors
Optional for rebated or non-rebated doors
Suitable for external fire and smoke doors
Single dead bolt small lock body
With follower action
Deadbolt 1-turn
For wooden or steel doors
For single-leaf doors
Optional for rebated or non-rebated doors
Suitable for external fire and smoke doors
Single dead bolt small lock body
With follower action
Deadbolt 1-turn

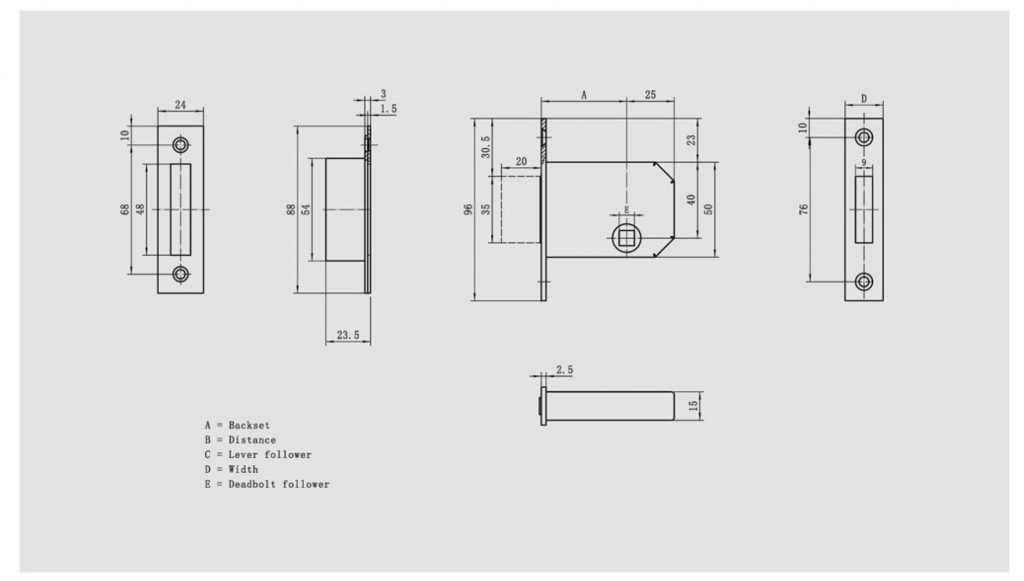

product design
Product parameters
| Sashlock | A45ZDG |
| Features | According to EN12209-Grade 3 For wooden or steel doors For single-leaf doors Optional for rebated or non-rebated doors Suitable for external fire and smoke doors Single dead bolt small lock body With follower action Deadbolt 1-turn |
| Follower | 5mm,8mm |
| Backet | 45mm |
| Type | square head |
| Length | 96mm |
| Width | 20mm |
| Stainless steel | satin stainless steel polished stainless steel |
| Vacuum metallizing | satin brass PVD AB AC |
| Accessories | Striking plate
Fixing screws |
