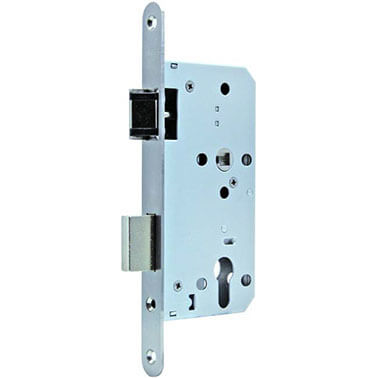

Mortise Mute Lock – A72Z-M
Product Description
According to EN 12209-Grade 3, DIN 18251
for wooden or steel doors
For single-leaf doors
Zinc alloy with black nylon, mute lock ,follower is Cold heading
Prepared for profile cylinders
With key action
Deadbolt 2-turns
for wooden or steel doors
For single-leaf doors
Zinc alloy with black nylon, mute lock ,follower is Cold heading
Prepared for profile cylinders
With key action
Deadbolt 2-turns

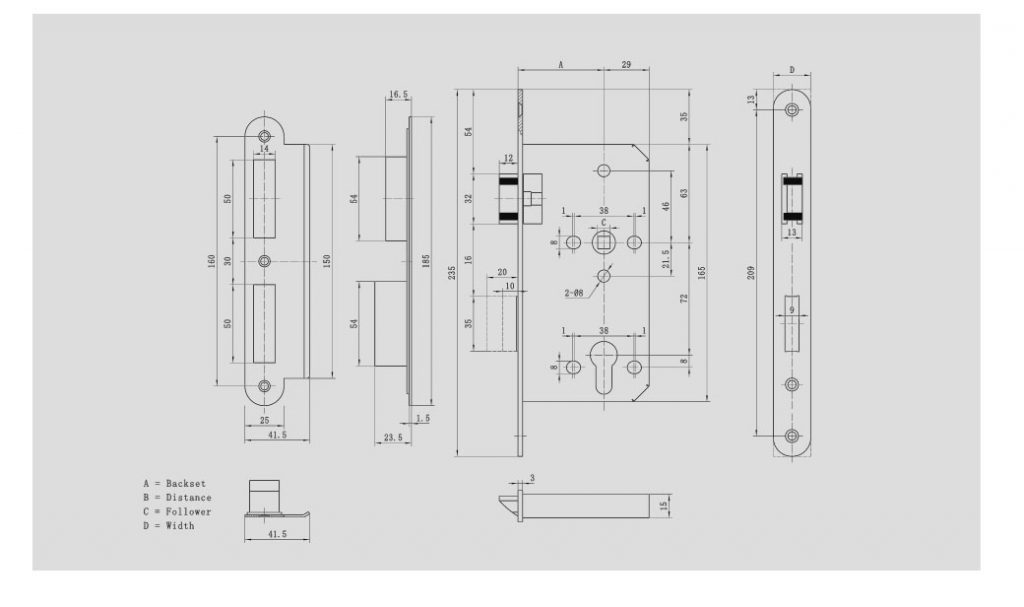

product design
Product parameters
| Sashlock | A72Z-M |
| Features | According to EN 12209-Grade 3, DIN 18251 for wooden or steel doors For single-leaf doors Zinc alloy with black nylon, mute lock ,follower is Cold heading Prepared for profile cylinders With key action Deadbolt 2-turns |
| Distance | 72mm |
| Backset | 55mm |
| Forend | 20/22/23/24mm Round/Square Material:SUS304 |
| Latch | Reversiable Material:Zink alloy with black ntlon |
| Deadbolt | 2-turn Material:Zink |
| Follower | 8x8mm Material:SUS304 |
| Finish | SSS/PSS/PVD/AB/AC/Black |
| Accessories: | Stricking plate/Plastic pocket/Fixing screws |
| Mechnical test | Latch 200,000 Deadbolt:50,000 |
