Mortise Magnetic Lock – A72Z-MS
Product Description
According to EN 12209-Grade 3, DIN 18251
For wooden or steel doors
For single-leaf doors
Prepared for profile cylinders
Magnetic latch ,no friction noise
Deadbolt 2-turns
product design

Product parameters
Sashlock A72Z-MS
Features According to EN 12209-Grade 3, DIN 18251
For wooden or steel doors
For single-leaf doors
Prepared for profile cylinders
Magnetic latch ,no friction noise
Deadbolt 2-turns

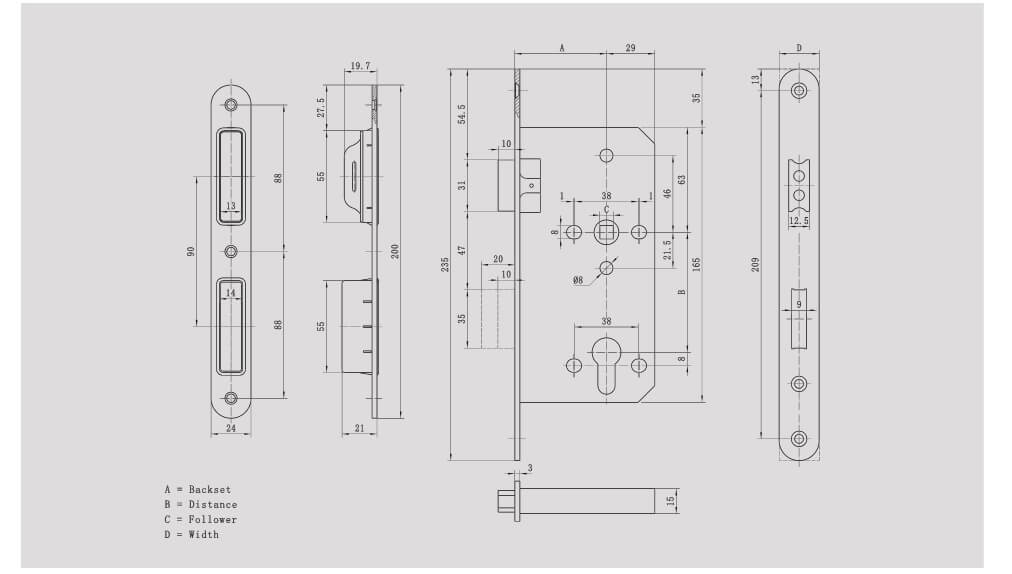

Distance 72mm
Backset 55mm
Forend 20/22/23/24mm      Round/Square    Material:SUS304
Latch Reversiable                        Material:SUS304
Deadbolt 2-turn                             Material:SUS304
Follower 8x8mm                              Material:SUS304
Finish SSS/PSS/PVD/AB/AC/Black
Accessories: Stricking plate/Plastic pocket/Fixing screws
Mechnical test Latch 200,000       Deadbolt:50,000
