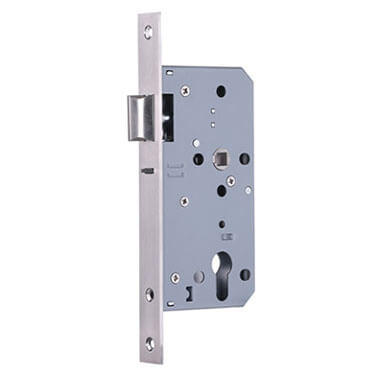

Nightlatch Lock – A72ZN
Product Description
According to EN 12209-Grade 3,DIN 18251-1
For wooden or steel doors
For single-leaf doors
Optional for rebated or non-rebated doors
Suitable for doors where single action of escape is required
The door will be re-locked automatucally when its closed and the security will be ensured
For wooden or steel doors
For single-leaf doors
Optional for rebated or non-rebated doors
Suitable for doors where single action of escape is required
The door will be re-locked automatucally when its closed and the security will be ensured

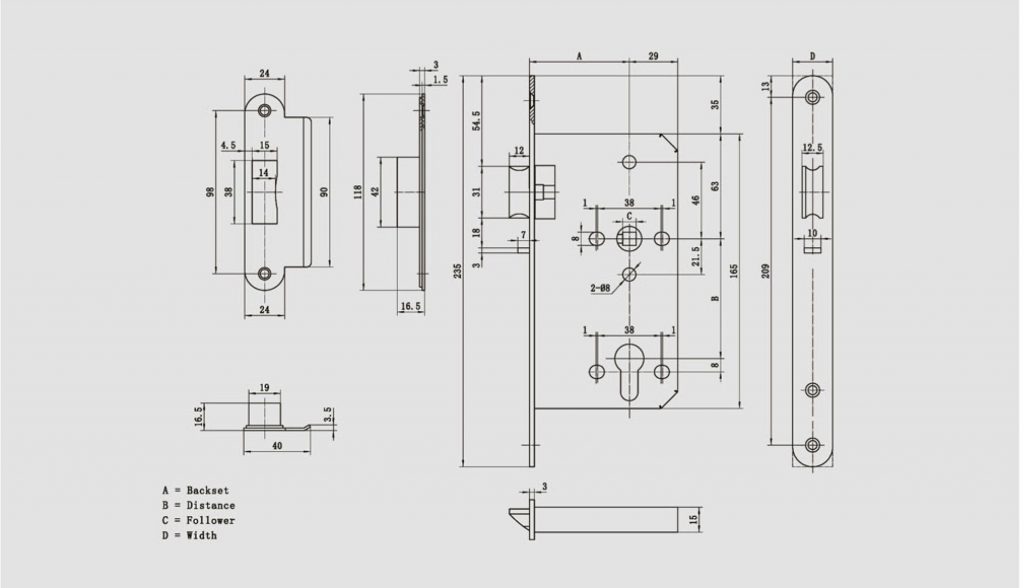

product design
Product parameters
| Sashlock | A72ZN |
| Featureus | According to EN 12209-Grade 3,DIN 18251-1 For wooden or steel doors For single-leaf doors Optional for rebated or non-rebated doors Suitable for doors where single action of escape is required The door will be re-locked automatucally when its closed and the security will be ensured |
| Follower | 7mm,8mm,9mm |
| Distance | 72mm |
| Backet | 50/60/70/80mm |
| Type | square head,round head |
| Thickness | 3mm |
| Width | 20mm,22mm,23mm,24mm |
| Stainless steel | satin stainless steel polished stainless steel |
| Vacuum metallizing | satin brass PVD AB AC |
| Accessories | Striking plate Fixing screws |
