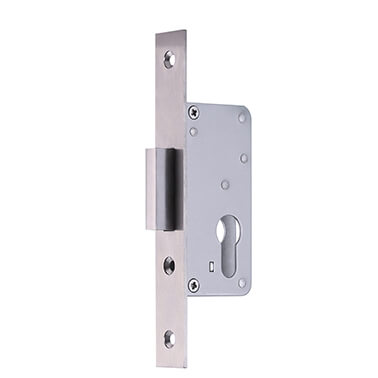

Mortise Deadbolt Lock – A35ZD
Product Description
According to EN 12209-Grade 2
For wooden or steel doors
For rebated or flush doors
For single-leaf doors
Single deadbolt lock body
Prepared for profile cylinders
with key action
Deadbolt 1-turn
For wooden or steel doors
For rebated or flush doors
For single-leaf doors
Single deadbolt lock body
Prepared for profile cylinders
with key action
Deadbolt 1-turn

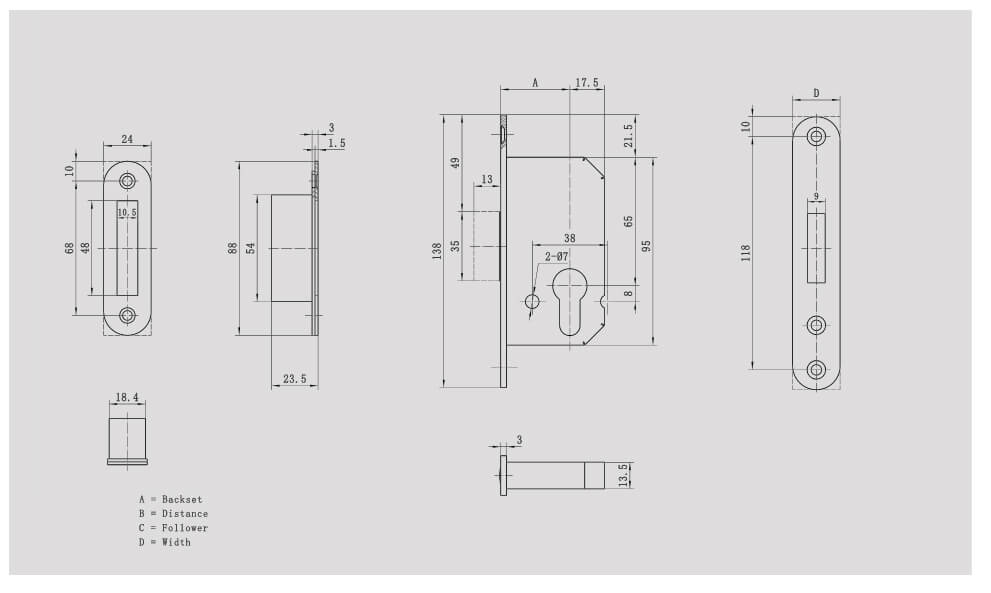

product design
Product parameters
| Sashlock | A35ZD |
| Features | According to EN 12209-Grade 2 For wooden or steel doors For rebated or flush doors For single-leaf doors Single deadbolt lock body Prepared for profile cylinders with key action Deadbolt 1-turn |
| Backset | 35mm |
| Forend | 20/23/24mm |
| Deadbolt | 1-turn Material:SUS304 |
| Follower | 8x8mm Material:SUS304 |
| Finish | SSS/PSS/PVD/AB/AC/Black |
| Accessories: | Stricking plate/Plastic pocket/Fixing screws |
| Mechnical test | Deadbolt:50,000 |
| Neutral salt spray test | 96h |
